Inoxs

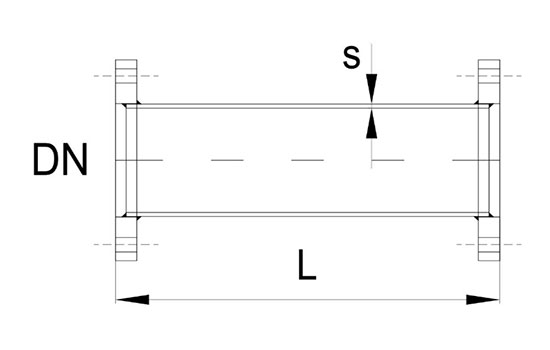

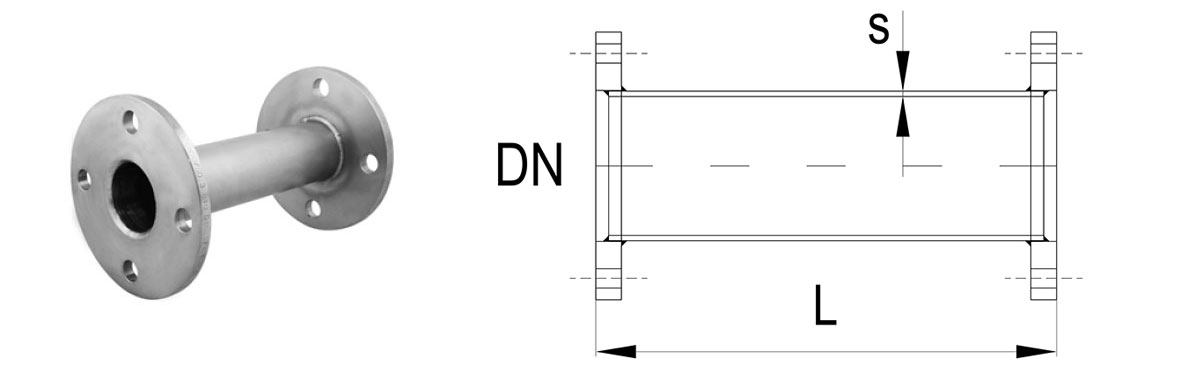

FF KOMAD
F - acc to EN 545 (DIN 28614) SS AISI 304 / 316 / ...
DN |
d |
s |
masa(kg) / komad za PN10 / PN16 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L |
|||||||||||||
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
L* |
|||
50 |
60.3 |
2 |
5.2 |
5.5 |
5.8 |
6.1 |
6.4 |
6.7 |
7.0 |
7.3 |
7.6 |
7.9 |
|
65 |
76.1 |
2 |
6.4 |
6.8 |
7.1 |
7.5 |
7.9 |
8.3 |
8.7 |
9.1 |
9.4 |
9.8 |
|
80 |
88.9 |
2 |
7.7 |
8.1 |
8.6 |
9.0 |
9.5 |
9.9 |
10.3 |
10.8 |
11.2 |
11.7 |
|
100 |
114.3 |
2 |
9.4 |
9.9 |
10.5 |
11.1 |
11.7 |
12.2 |
12.8 |
13.4 |
14.0 |
14.5 |
|
125 |
139.7 |
2 |
12.5 |
13.2 |
13.9 |
14.6 |
15.3 |
16.1 |
16.8 |
17.5 |
18.2 |
18.9 |
|
150 |
168.3 |
2 |
15.2 |
16.0 |
16.9 |
17.7 |
18.6 |
19.4 |
20.3 |
21.1 |
21.9 |
22.8 |
|
200 |
219.1 |
2 |
21.3 |
22.4 |
23.5 |
24.6 |
25.7 |
26.8 |
27.9 |
29.0 |
30.1 |
31.2 |
|
250 |
273 |
3 |
27.9 |
29.9 |
32.0 |
34.0 |
36.1 |
38.1 |
40.2 |
42.3 |
44.3 |
46.4 |
|
300 |
323.9 |
3 |
32.0 |
34.5 |
36.9 |
39.4 |
41.8 |
44.2 |
46.7 |
49.1 |
51.6 |
54.0 |
|
350 |
355.6 |
3 |
46.7 |
49.4 |
52.0 |
54.7 |
57.4 |
60.1 |
62.8 |
65.4 |
68.1 |
70.8 |
|
400 |
406.4 |
4 |
60.1 |
64.2 |
68.3 |
72.3 |
76.4 |
80.5 |
84.6 |
88.7 |
92.8 |
96.8 |
|
450 |
457 |
4 |
71.2 |
75.8 |
80.4 |
85.0 |
89.6 |
94.2 |
98.7 |
103.3 |
107.9 |
112.5 |
|
500 |
508 |
5 |
87.0 |
93.4 |
99.7 |
106.1 |
112.5 |
118.9 |
125.3 |
131.6 |
138.0 |
144.4 |
|
600 |
610 |
5 |
115.3 |
122.9 |
130.6 |
138.2 |
145.9 |
153.6 |
161.2 |
168.9 |
176.6 |
184.2 |
|
Projektovanje,proizvodnja i prodaja

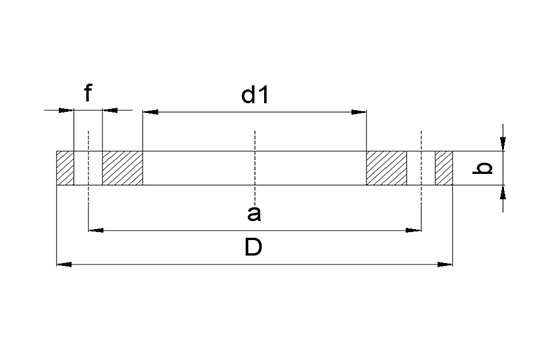

Prirubnice

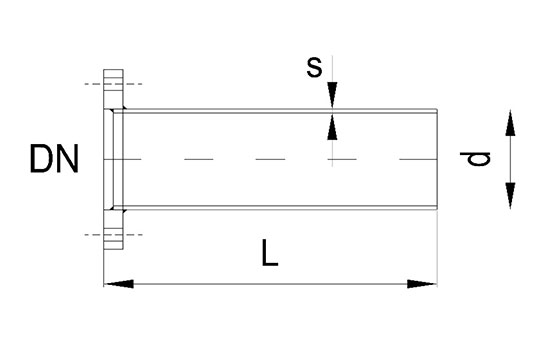

F komad
FF komad

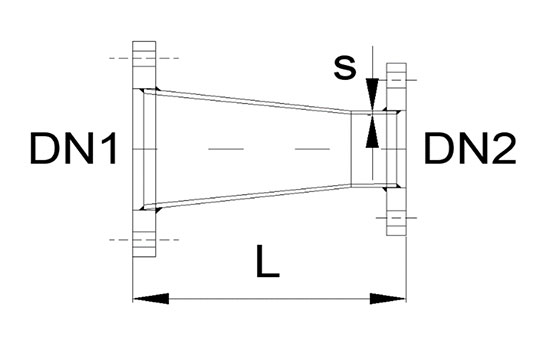

FFR redukcija

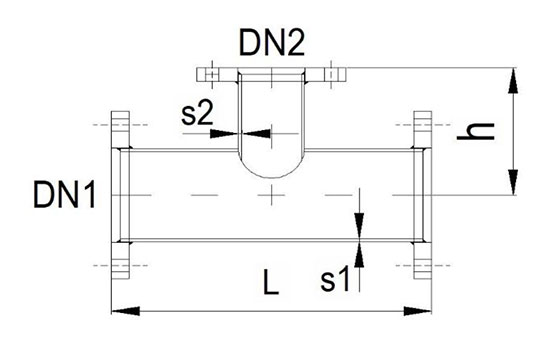

T komad

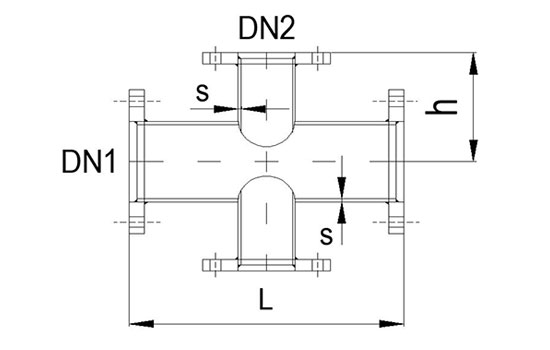

TT komad

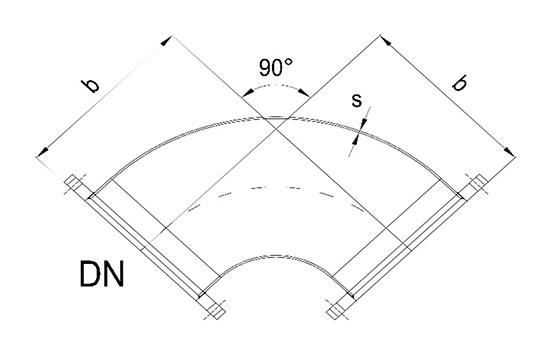

Q komad
