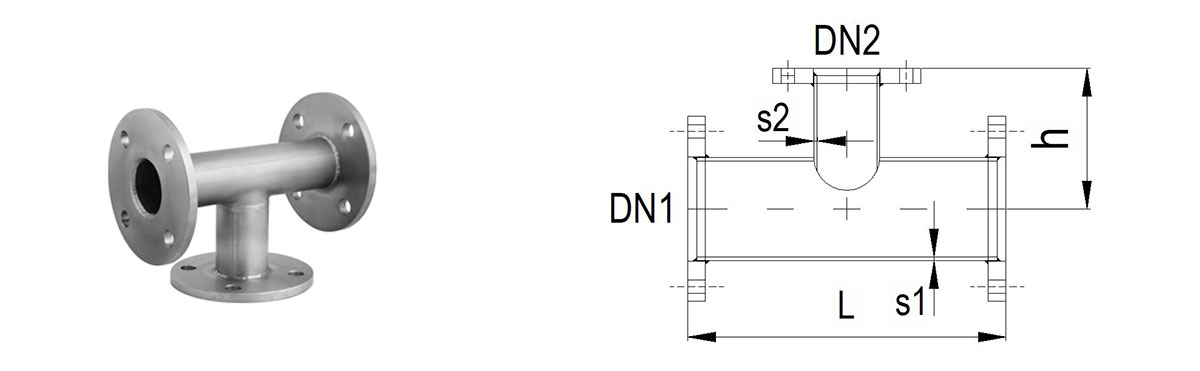

T - acc to EN 545 (DIN 28643)

DN1	DN2	L	h	s1	s2	masa (kg)
DN1	DN2	L	h	s1	s2	PN10/PN16
50	50	300	150	2	2	8.7
65	50	330	165			10.2
65	65					10.9
80	50					11.7
	65					12.3
	80					13.0
100	50	360	170	2	2	13.8
	65		170			14.5
	80		175			15.3
	100		180			16.3
125	50	400	185	2	2	17.7
	65		185			18.4
	80		190			19.1
	100		195			20.2
	125		200			22.0
150	50	440	200	2	2	21.1
	65		200			21.8
	80		205			22.6
	100		210			23.7
	125		215			25.5
	150		220			27.1
200	50	520	230	2	2	29.1
	65		235			29.8
	80		235			30.6
	100		240			31.7
	125		240			33.5
	150		250			35.2
	200		260			38.9
250	80	700	265	2	2	40.2
	100		275			41.4
	125		275			43.3
	150		300			45.1
	200		325			49.1
	250		350			53.1
300	80	800	290	3	2	51.6
	100		300			52.8
	125		300			54.7
	150		325			56.6
	200		350			60.6
	250		375			64.7

SS AISI 304 / 316 / ...

DN1	DN2	L	h	s1	s2	masa (kg)
DN1	DN2	L	h	s1	s2	PN10/PN16
300	300	800	400	3	3	71.3
350	80	850	325	3	2	71.8
	100					73.0
	150					76.7
	200					80.5
	250					84.1
	300		425		3	92.0
	350		425		3	100.2
400	100	900	350	4	2	99.2
	125					101.1
	150					102.9
	200					106.7
	250					110.5
	300		450		3	118.5
	350				3	126.8
	400				4	139.1
450	150	950	350	4	2	120.4
	250		350		2	128.0
	300		450		3	136.2
	350				3	144.5
	400				4	156.9
	450				4	164.5
500	125	1000	400	5	2	153.1
	150					155.0
	200					158.9
	250					162.8
	300		500		3	171.4
	350				3	179.8
	400				4	192.8
	450				4	200.7
	500				5	216.6
600	150	1100	450	5	2	202.9
	200					206.9
	250					210.9
	300		550		3	220.1
	350				3	228.6
	400				4	242.3
	450				4	250.4
	500				5	267.3
	600				5	287.8
